Isla ZTL36

Isla ZTL36

96W Surface Mounted Linear
Options

  • Surface mounted LED linear profile with clip in acrylic diffuser providing smooth light beam distribution
  • Featuring an interlocking system providing the ability to join luminaires and create seemless linear lighting installations
  • Also available in 1200 mm (ZTL12), 1800mm (ZTL18), 2400mm (ZTL24) and 3000mm (ZTL30) lengths. Customisable lengths are available upon request
  • CRI 90+ available in 2700K, 3000K, 3500K, 4000K and 5000K CCT options
  • Supplied with an integral driver system and integrated wiring harness, allowing for 3 independent switchable lighting circuits
Product Standards
Icon type Trim var Black
Icons Technical RGB LEDSMD Colour
Icon type CRI var CRI90
Icon type Beam Angle var VW
Icon IP20
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions3600 (L) X 130 (W) X 85 (H) mm
Weight12900 g

General Characteristics

Family
Isla
Surface
Ceiling
Mounting
Surface Mounted
Ingress ProtectionIP20

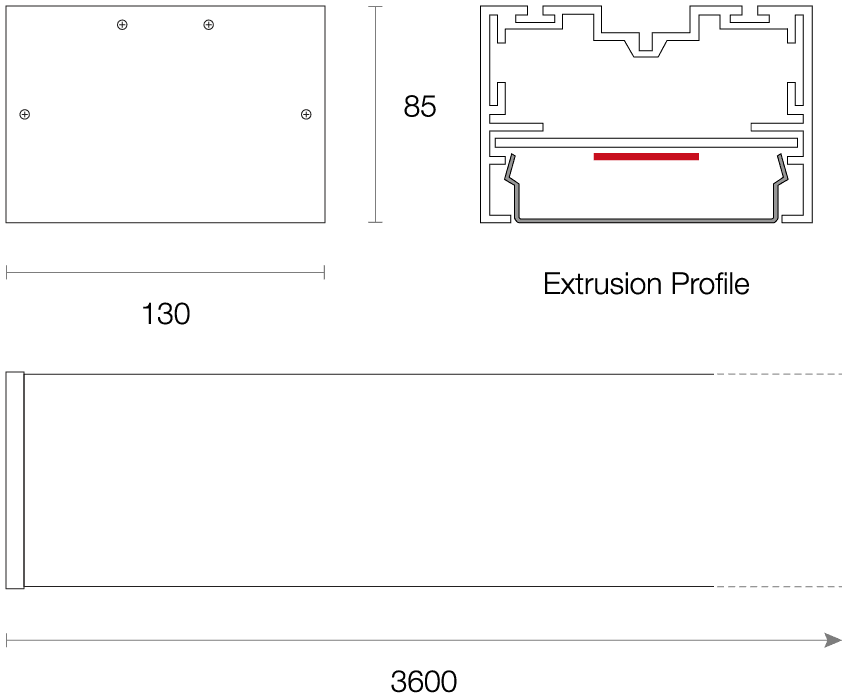

Dimensions (mm)

ZTL36 2x

Technical Characteristics*

LED Power96W
LED TypeSMD
LED Lumen Output*13392 lm
Luminous Flux*7831 lm
Efficacy*79.91 lm/W
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L70)
System Power98W Typical
Driver ModelTrend 150235 (Non-dim)
* Based on: 4000K, CRI 90+ Standard
