Neon NF2012H

Neon NF2012H

10W/m 24V DC IP65 Rated Flexible Strip with Horizontal Bend
Options

  • Flexible strip characterised by its neon like appearance, horizontal bending and IP65 rating, allowing for light continuity and uniform lighting distribution
  • Can be secured with stainless steel clips or mounted in an aluminium profile
  • CRI 80+ available in 3000K, 4000K and Blue CCT options
Product Standards
Icons Technical RGB Voltage24 V Colour
Icons Technical RGB LEDSMD Colour
Icon type CRI var CRI80
Icon IP65
Icons Technical RGB Australian Red

Physical Characteristics LED Strip

Dimensions1000 (L) X 20 (W) X 12 (H) mm
Max Reel Length5000 mm*
* Custom Lengths Available

General Characteristics

Family
Neon
Surface
Ceiling|
Floor|
Wall
Mounting
Surface Mounted
Ingress ProtectionIP65

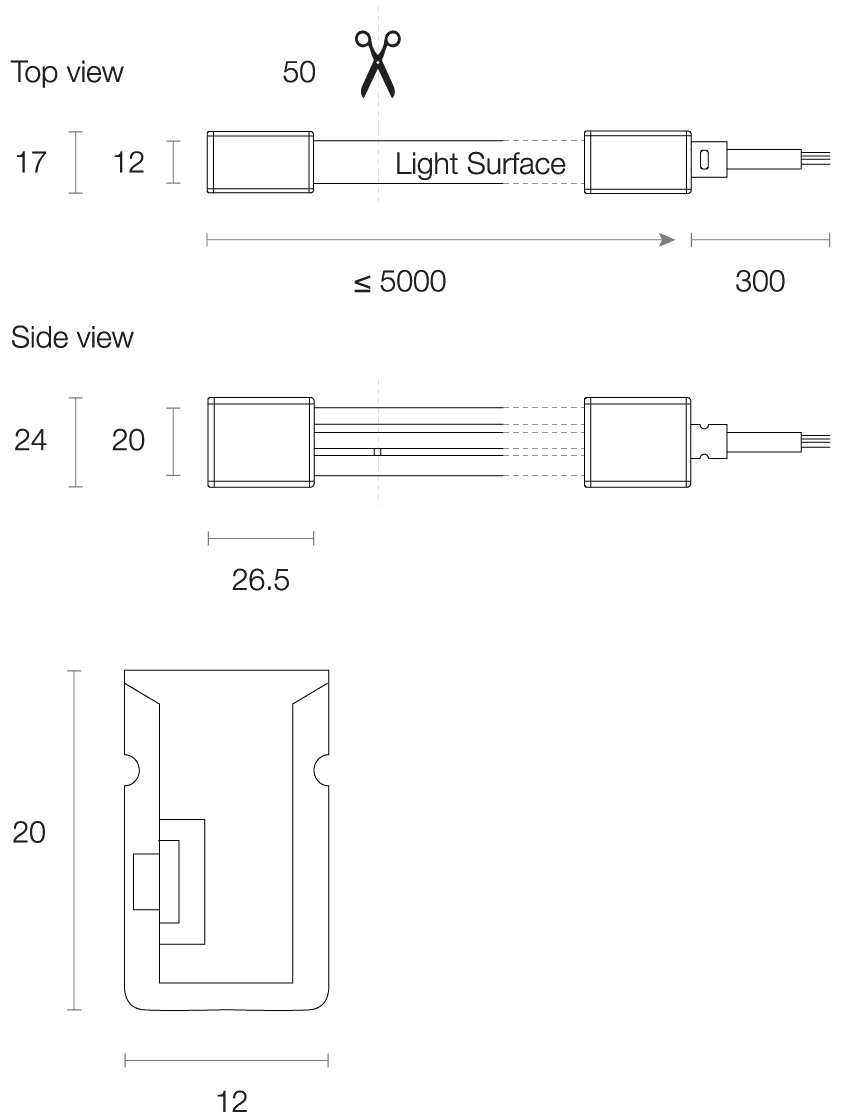

Dimensions (mm)

NF2012 H 2x

Technical Characteristics*

Input Voltage24V DC
LED Power10W per metre
LED TypeSMD
LED Lumen Output*750 lm
Colour DeviationSDCM ≤ 3
Lifetime50,000 hrs
LED Pitch120 LEDs per meter
LED Cutting Increment50 mm
Driver ModelTrend 150310 (L&T)
* Based on: 4000K, CRI 80+ Standard
